The Ground Truth About Metal Junction Boxes

1. Why Grounding Matters

Alright, let's talk metal junction boxes. Those little metal enclosures protecting your electrical connections. You might be staring at one right now, wondering, "Hey, should that thing be grounded?" The short answer? Almost always, YES. But like a good electrical circuit, there's more to it than just a simple on/off switch. Let's dive into why grounding these boxes is so vital, and what happens when they're not. Think of it like this: grounding is the unsung hero of your electrical system, quietly preventing you from becoming a human lightning rod.

Imagine a scenario: a stray wire inside your junction box comes loose and touches the metal casing. Without proper grounding, that casing becomes energized. Now, you innocently touch the box while, say, trying to fix a light fixture. ZAP! You've just become part of the circuit, and it's not a pleasant experience. Grounding provides a safe path for that stray current to flow back to the source, tripping the circuit breaker and cutting off the power before it cuts you off...permanently.

Furthermore, think about the long game. Metal can corrode over time, especially in damp environments. This corrosion can weaken the electrical connections within the box, potentially leading to arcing and sparking. A properly grounded metal junction box helps minimize the risk of these hazards by providing a low-resistance path to ground, preventing voltage from building up and causing problems. It's like having a tiny electrical safety net that's always on guard.

And let's not forget the legal and code-related aspects. Electrical codes (like the National Electrical Code or NEC) typically require metal junction boxes to be grounded. This isn't just some arbitrary rule; it's based on decades of experience and research aimed at ensuring electrical safety. Ignoring these codes can lead to fines, insurance complications, and, more importantly, increased risk of electrical hazards. So, grounding your metal boxes is not just a good idea; it's often the law.

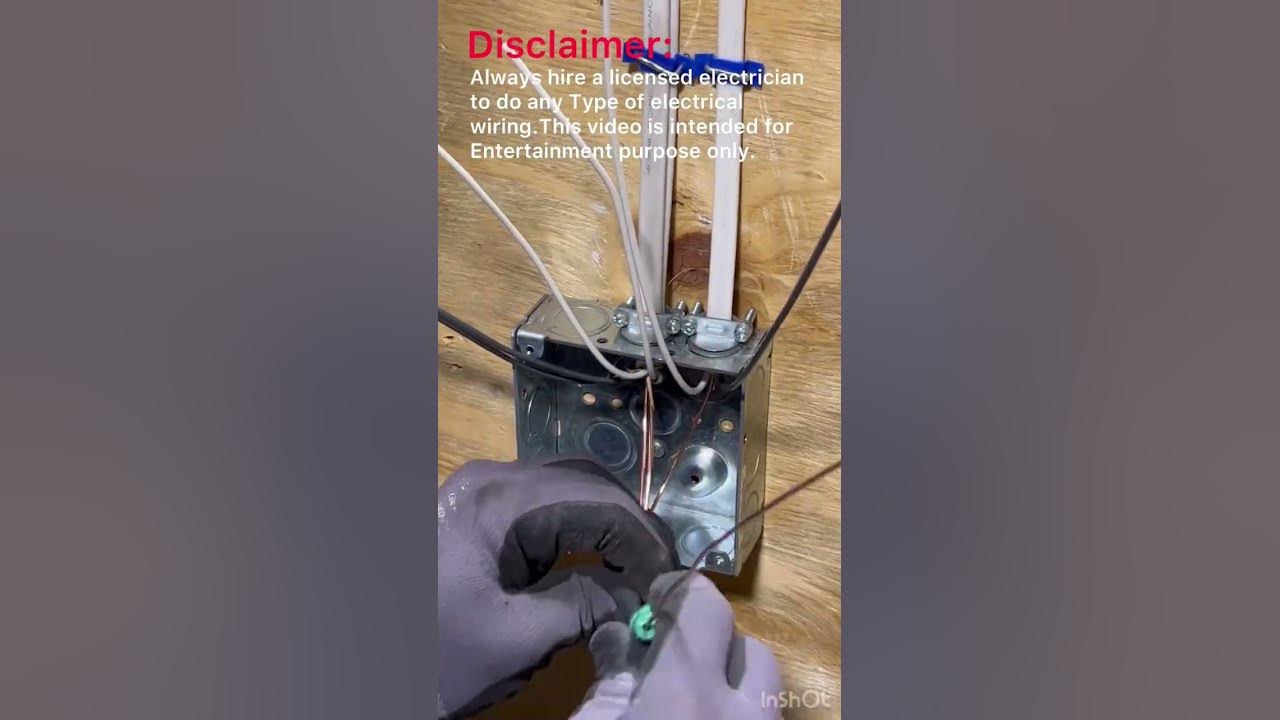

Grounding The Metal Junction Box. Junctionbox Electricalwiring

How to Ground a Metal Junction Box

2. Connecting the Dots

Okay, so you're convinced grounding is important. Great! Now, how do you actually do it? Well, I'm going to tell you, but with a HUGE caveat: If you're not comfortable working with electricity, please, PLEASE call a licensed electrician. Electricity is not something to mess around with, and a mistake can be dangerous, even fatal. Consider this section more of an overview than a DIY tutorial.

The most common method is using a grounding screw. Most metal junction boxes come with a pre-tapped hole for a grounding screw, usually green. You simply attach a grounding wire (typically bare copper or green insulated wire) to this screw and connect it to the grounding system of your electrical circuit. This grounding wire is usually connected to the ground bar in your electrical panel.

Another method, particularly in older installations, involves using a grounding clip or a bonding jumper. A grounding clip is a small metal clip that attaches to the edge of the junction box and provides a connection point for the grounding wire. A bonding jumper is a short length of wire used to connect two separate metal components, ensuring they are both at the same electrical potential (ground). This is often used when the metal conduit itself is used as the grounding path.

It's extremely important to make sure the grounding connections are secure and make good electrical contact. Loose connections can create resistance, which can negate the effectiveness of the grounding system. Use the correct size of wire and the appropriate connectors. And again, if you're unsure about any of this, consult a qualified electrician. Your safety is worth more than saving a few bucks on a DIY project.

How To Ground A Junction Box At Ella Hogarth Blog

When Grounding Becomes a Gray Area

3. Exceptions and Special Cases

While most metal junction boxes should be grounded, there are a few exceptions to the rule. These exceptions are often related to specific types of circuits or installations, and they're usually outlined in the electrical code. For example, some low-voltage circuits might not require grounding of the junction boxes. However, these situations are relatively rare and often require specialized knowledge to identify correctly.

Another situation where grounding can be a bit more complex is when dealing with isolated ground circuits. These circuits are designed to minimize electrical noise and interference, and they often have a separate grounding system from the regular electrical system. In these cases, the grounding of the junction boxes might be handled differently to maintain the integrity of the isolated ground.

It's also crucial to consider the age of your electrical system. Older homes may have wiring practices that differ from modern standards. What was acceptable decades ago might not be up to code today. If you're working on an older electrical system, it's especially important to have it inspected by a qualified electrician to ensure that it meets current safety standards.

Finally, remember that electrical codes can vary depending on your location. Local jurisdictions may have amendments or interpretations of the national electrical code that affect grounding requirements. Always check with your local building department or electrical inspector to ensure that you're following the correct regulations.

How To Ground An Outlet Into A Metal Box Details Guide

Signs of a Grounding Problem

4. Buzzing, Tingling, and Other Electrical Headaches

How do you know if you have a grounding problem with your metal junction boxes? Well, sometimes the signs are obvious, like a circuit breaker that keeps tripping or a visible spark when you touch the box. But other times, the symptoms can be more subtle. A slight tingling sensation when you touch a metal appliance or a humming sound coming from an outlet could indicate a grounding issue.

Another common sign is flickering lights. While flickering lights can be caused by various factors, a faulty grounding connection can sometimes be the culprit. The lack of a solid ground can cause voltage fluctuations that affect the performance of your light fixtures. If you notice persistent flickering, it's worth checking the grounding connections in your electrical system.

Also, pay attention to your electrical bills. A sudden spike in your electricity consumption could indicate a grounding problem. Faulty grounding can lead to increased energy usage as the system struggles to maintain proper voltage levels. This is especially true if you have older appliances or wiring that are more susceptible to grounding issues.

If you suspect a grounding problem, don't try to diagnose it yourself unless you have the necessary electrical expertise. Contact a licensed electrician to inspect your electrical system and identify the source of the problem. They have the tools and knowledge to safely diagnose and repair grounding issues, preventing potential electrical hazards.

How To Ground Junction Box A Comprehensive Guide

Grounding FAQs

5. Solving the Mysteries of Electrical Grounding

Let's address some of the most common questions about grounding metal junction boxes:

6. Q

A: While it might seem tempting, grounding to a metal water pipe is generally not recommended as the primary grounding method. Water pipes can be interrupted by plastic sections, and they can also corrode over time, compromising the grounding connection. It's always best to use a dedicated grounding wire connected to the grounding system of your electrical panel.

7. Q

A: As discussed earlier, not grounding a metal junction box can create a serious electrical hazard. If a live wire comes into contact with the ungrounded box, it can become energized, potentially causing electric shock to anyone who touches it. Additionally, it can increase the risk of electrical fires and damage to electrical equipment.

8. Q

A: While self-tapping screws might seem convenient, they're generally not recommended for grounding. They may not provide a reliable and secure electrical connection. It's always best to use a grounding screw that is specifically designed for electrical grounding purposes. These screws are typically made of corrosion-resistant materials and provide a tight, low-resistance connection.
