1. Understanding the Basics of CAN Communication

Ever wondered how your car's various electronic parts "talk" to each other? That's where Controller Area Network (CAN) comes in! It's like a digital language they all understand. CAN has been the backbone of automotive communication for decades, reliably shuttling information between engine control units (ECUs), sensors, and actuators. Think of it as the postal service for your car's internal data, ensuring everything works in harmony. Without it, you wouldn't have features like anti-lock brakes or even a functioning dashboard.

But technology never stands still, does it? As cars become increasingly complex, with more sensors, advanced driver-assistance systems (ADAS), and even autonomous driving features, the original CAN standard started to feel a bit... sluggish. Imagine trying to send a high-resolution video over dial-up internet — not a pretty picture. That's where CAN FD (Flexible Data-Rate) came into the picture, offering a significant speed boost. It's like upgrading from that dial-up connection to a blazing-fast fiber optic line!

And now, there's a new kid on the block: CAN XL (eXtra Long). It's promising even greater bandwidth and flexibility to handle the ever-increasing data demands of modern vehicles. So, let's dive into what makes CAN XL and CAN FD tick, and see how they stack up against each other. Because understanding these technologies helps to understand how cars are rapidly changing!

Think of it this way: CAN is the reliable, old pickup truck. CAN FD is the sporty SUV with more horsepower. CAN XL is like a futuristic electric truck with enough power to tow a house. Each serves a purpose, and the best choice depends on the specific needs of the application.

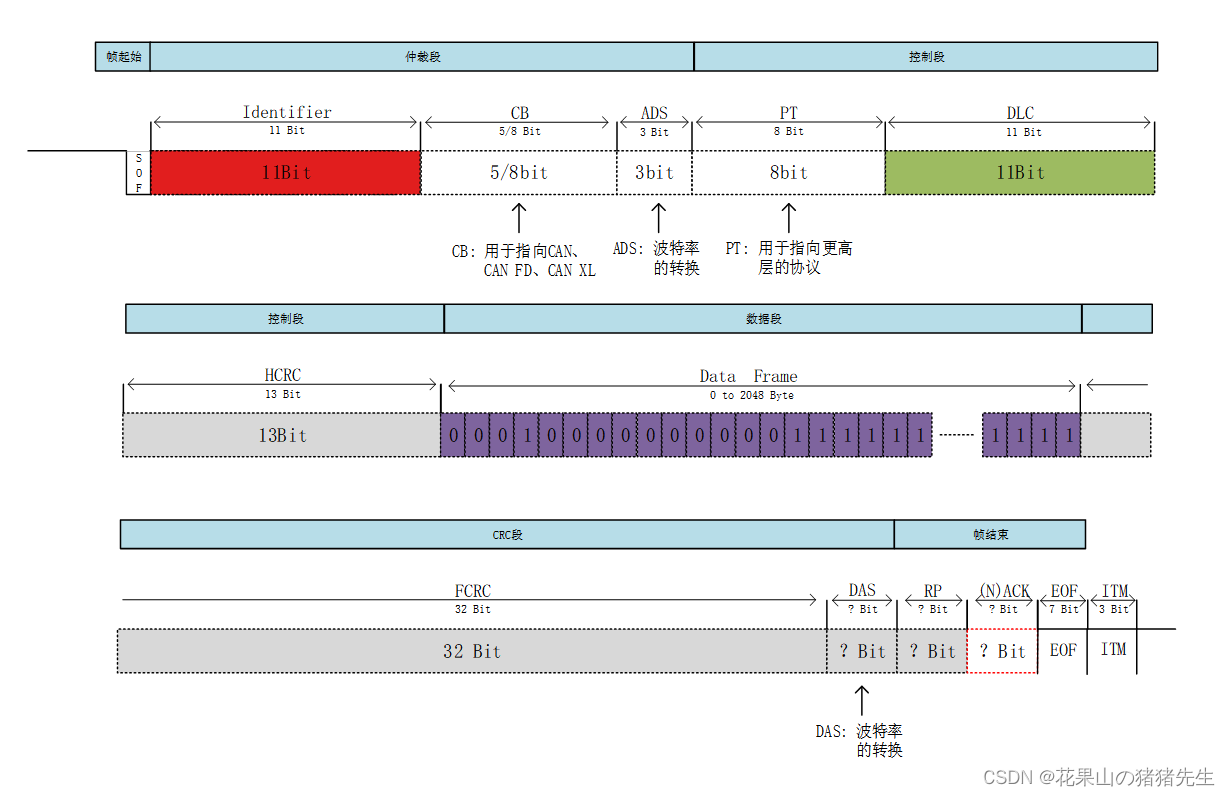

CAN/CAN FD/CAN XL(参考)数据帧格式CSDN博客

CAN FD

2. Increased Bandwidth for Demanding Applications

CAN FD was developed to address the limitations of classic CAN in terms of data rate and payload size. It increases the data rate from 1 Mbit/s to potentially 8 Mbit/s or even higher (although practically, it's often around 2-5 Mbit/s). It also increases the payload size from 8 bytes to up to 64 bytes per frame. This improvement makes it possible to transfer more data in a shorter amount of time, which is essential for applications that require real-time performance, such as advanced driver-assistance systems (ADAS).

Imagine a parking assist system. It needs to process data from multiple sensors in real-time to accurately maneuver the car. CAN FD provides the necessary bandwidth for this data to be transmitted and processed quickly, enabling a smooth and safe parking experience. Without the speedier processing of CAN FD, a collision might well occur.

CAN FD maintains backward compatibility with classic CAN, meaning that CAN FD nodes can coexist on the same network with classic CAN nodes. This allows for a gradual transition to CAN FD without requiring a complete overhaul of the existing system. It's like adding a new, faster lane to a highway while still keeping the existing lanes open.

However, CAN FD still has its limitations. While it offers a significant improvement over classic CAN, it may not be sufficient for future applications that require even higher bandwidth, such as autonomous driving systems that generate vast amounts of data from cameras, radar, and lidar sensors. This is where CAN XL enters the picture!

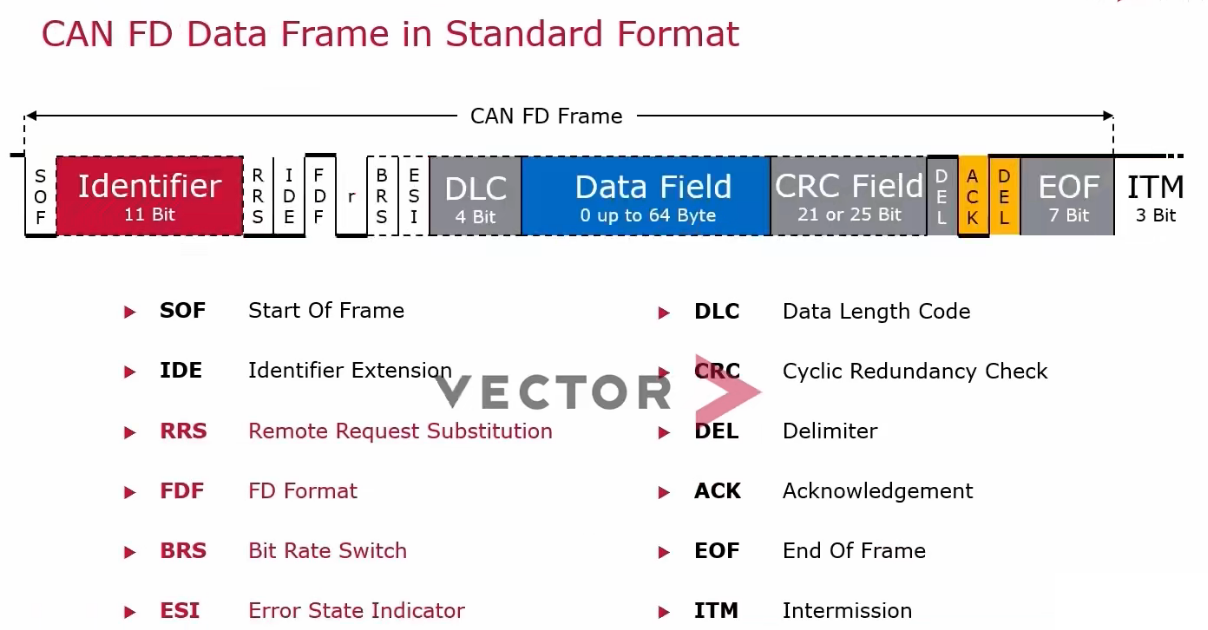

CAN FD Protocol Tutorial Kvaser Advanced Solutions

CAN XL

3. Extreme Bandwidth and Flexibility

CAN XL takes things to a whole new level, offering significantly higher data rates than CAN FD. We're talking potential data rates of 10 Mbit/s and beyond! It also introduces a new, more efficient frame format that can accommodate even larger payloads, up to 2048 bytes per frame. That's like going from a small package to a whole shipping container!

This massive increase in bandwidth opens up possibilities for advanced applications such as sensor fusion, high-resolution video streaming, and complex control algorithms. Imagine a fully autonomous vehicle processing data from multiple sensors and cameras simultaneously, making split-second decisions based on a vast amount of information. CAN XL could provide the necessary bandwidth for this to happen reliably and efficiently.

CAN XL introduces a new protocol layer called the Service-Oriented Communication Interface (SOCIF). SOCIF allows for more flexible and efficient communication between nodes, enabling the development of more sophisticated and scalable systems. It's like adding a smart traffic management system to the highway, optimizing the flow of data and preventing bottlenecks.

However, CAN XL is not without its challenges. It is not backward compatible with classic CAN or CAN FD, meaning that a complete redesign of the network is required to implement CAN XL. It also requires more complex hardware and software, which can increase the cost of implementation. Furthermore, it's still relatively new. This means that support and tools may not be readily available as more established technologies.

CAN XL vs. CAN FD

4. A Head-to-Head Comparison

Let's break down the key differences between CAN XL and CAN FD in a more structured way. First, data rate. CAN FD typically operates at up to 8 Mbit/s, while CAN XL can reach 10 Mbit/s or higher. Then, payload size. CAN FD supports up to 64 bytes per frame, while CAN XL supports up to 2048 bytes. Backward compatibility? CAN FD is backward compatible with classic CAN; CAN XL is not. Complexity? CAN FD is relatively simple to implement; CAN XL is more complex and requires more advanced hardware and software.

The trade-offs are clear. CAN FD offers a good balance of performance, cost, and compatibility. It's a suitable choice for applications that require a moderate increase in bandwidth and can benefit from backward compatibility. CAN XL, on the other hand, offers the highest possible performance but comes at the cost of increased complexity, lack of backward compatibility, and higher implementation costs. It's best suited for applications that demand extreme bandwidth and are willing to invest in a completely new network architecture.

Another important consideration is the maturity of the technology. CAN FD is a well-established technology with a wide range of available tools and support. CAN XL is still relatively new, and the ecosystem is still developing. This means that it may be more challenging to find qualified engineers and readily available tools for CAN XL compared to CAN FD.

Ultimately, the choice between CAN XL and CAN FD depends on the specific requirements of the application. There is no one-size-fits-all answer. It's crucial to carefully evaluate the bandwidth requirements, cost constraints, and compatibility considerations before making a decision. Think of it like choosing the right tool for a job: a hammer is great for nails, but you wouldn't use it to tighten a screw!

CAN XL Next Step In Evolution

Real-World Applications and Future Trends

5. Where Will These Technologies Be Used?

CAN FD is already widely used in automotive applications such as ADAS, infotainment systems, and powertrain control. It's also finding its way into industrial automation, medical devices, and aerospace applications where real-time performance and reliability are critical. Anywhere that faster processing is needed CAN FD can do the trick.

CAN XL is expected to become more prevalent in future automotive applications, particularly in autonomous driving systems and advanced sensor fusion applications. It could also find applications in other industries that require high-bandwidth communication, such as industrial robotics, high-performance computing, and aerospace. As the demand for faster, more reliable communication grows, CAN XL could find a place in the market.

One interesting trend is the convergence of automotive and IT technologies. As cars become more connected and autonomous, they are increasingly relying on Ethernet-based communication for high-bandwidth applications such as infotainment and software updates. However, CAN FD and CAN XL are still expected to play a crucial role in real-time control and safety-critical applications where deterministic communication is essential.

The future of automotive communication is likely to involve a hybrid approach, with different communication technologies used for different purposes. Ethernet will handle high-bandwidth data transfer, while CAN FD and CAN XL will handle real-time control and safety-critical functions. This will create a complex and sophisticated communication ecosystem that enables the development of smarter, safer, and more connected vehicles.

CAN FD Explained (2021) AutoPi

FAQ

6. Demystifying CAN Communication

Q: Is CAN XL a direct replacement for CAN FD?

A: Not really. CAN XL is more of a leap forward than a simple replacement. It offers significantly higher bandwidth, but it's not backward compatible, meaning you can't just swap out CAN FD components with CAN XL. It's more like choosing between building a new highway (CAN XL) or adding lanes to an existing one (CAN FD).

Q: What are the biggest challenges in implementing CAN XL?

A: The biggest hurdle is the lack of backward compatibility. You'll need to redesign your entire network to use CAN XL. Plus, it requires more complex hardware and software, which can increase costs. And because it's still a relatively new technology, the support ecosystem isn't as mature as CAN FD.

Q: Will CAN eventually be replaced by Ethernet in vehicles?

A: It's unlikely that CAN will be completely replaced. Ethernet is great for high-bandwidth applications like infotainment, but CAN excels at real-time control and safety-critical functions. The future likely involves a hybrid approach, where both technologies work together to create a comprehensive communication system within the vehicle.

Q: Which is more secure between the two, CAN FD and CAN XL?

A: Neither CAN FD nor CAN XL inherently offers superior security. Security depends on the implementation and applied security protocols. Both can be vulnerable to attacks if not properly secured. The security measures needed depend upon the use case and the threat model you're defending against.
