PWM vs. MPPT

1. What's the Big Deal with Charge Controllers Anyway?

So, you're diving into the world of solar power, huh? Awesome! But before you start picturing yourself basking in the glow of free energy, there's a crucial piece of equipment you need to understand: the solar charge controller. Think of it as the brain that manages the flow of power from your solar panels to your batteries, ensuring everything runs smoothly and efficiently. Without it, you risk frying your batteries or not getting the most out of your solar investment. And let's be honest, nobody wants fried batteries!

Now, when it comes to charge controllers, there are two main contenders in the ring: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). Both do the same basic job, but they operate in fundamentally different ways, leading to variations in performance and cost. Choosing the right one depends on your specific needs, budget, and solar setup. It's like choosing between a reliable, fuel-efficient sedan and a high-performance sports car. Both will get you where you need to go, but the experience will be quite different!

This isn't about picking a "winner" outright. Instead, we're going to break down the strengths and weaknesses of each type, so you can make an informed decision. We'll explore how they work, when each one shines, and which situations might call for one over the other. Get ready to delve into the surprisingly fascinating world of solar charge controllers! Prepare for some electrical jargon, simplified for easy digestion. And maybe grab a cup of coffee - it's about to get electrifying!

Consider this your friendly guide through the maze of solar power components, helping you demystify the tech and choose the best option for your renewable energy journey. Think of us as your solar-savvy buddies, here to shed some light on the subject, one illuminating paragraph at a time. Okay, enough build-up. Let's get started!

What Is The Difference Between MPPT And PWM Charge Controllers? JMHPOWER

Understanding PWM Charge Controllers

2. How PWM Controllers Work Their Magic (or Not-So-Magic)

PWM controllers are the simpler, more established technology. They work by essentially connecting the solar panel directly to the battery for short bursts. The "pulse width" refers to the amount of time the connection is active versus inactive. Think of it like flicking a light switch on and off rapidly. By varying the on/off ratio (the pulse width), the controller can regulate the amount of charge going into the battery.

Here's the catch: PWM controllers effectively force the solar panel to operate at the battery voltage. This means that if your battery is at 12 volts, the solar panel is forced to produce power at 12 volts, even if it's capable of producing more at a higher voltage. This can lead to wasted energy, especially when the battery is almost fully charged, or if your solar panel voltage doesn't closely match your battery voltage.

Imagine trying to pour water from a wide-mouthed pitcher into a narrow-necked bottle. You're going to spill some, right? That's kind of what happens with a PWM controller. It's simple and reliable, but it's not always the most efficient way to transfer power. It's like using a standard lightbulb versus an LED — both provide light, but one's a lot more energy efficient. It's good for small setups and a limited budget.

PWM controllers are generally cheaper than MPPT controllers, making them a popular choice for smaller solar systems or when budget is a primary concern. They're also known for their reliability and simplicity, with fewer components that can potentially fail. They're the "old faithful" of the solar charge controller world. Just don't expect them to squeeze every last drop of power out of your solar panels.

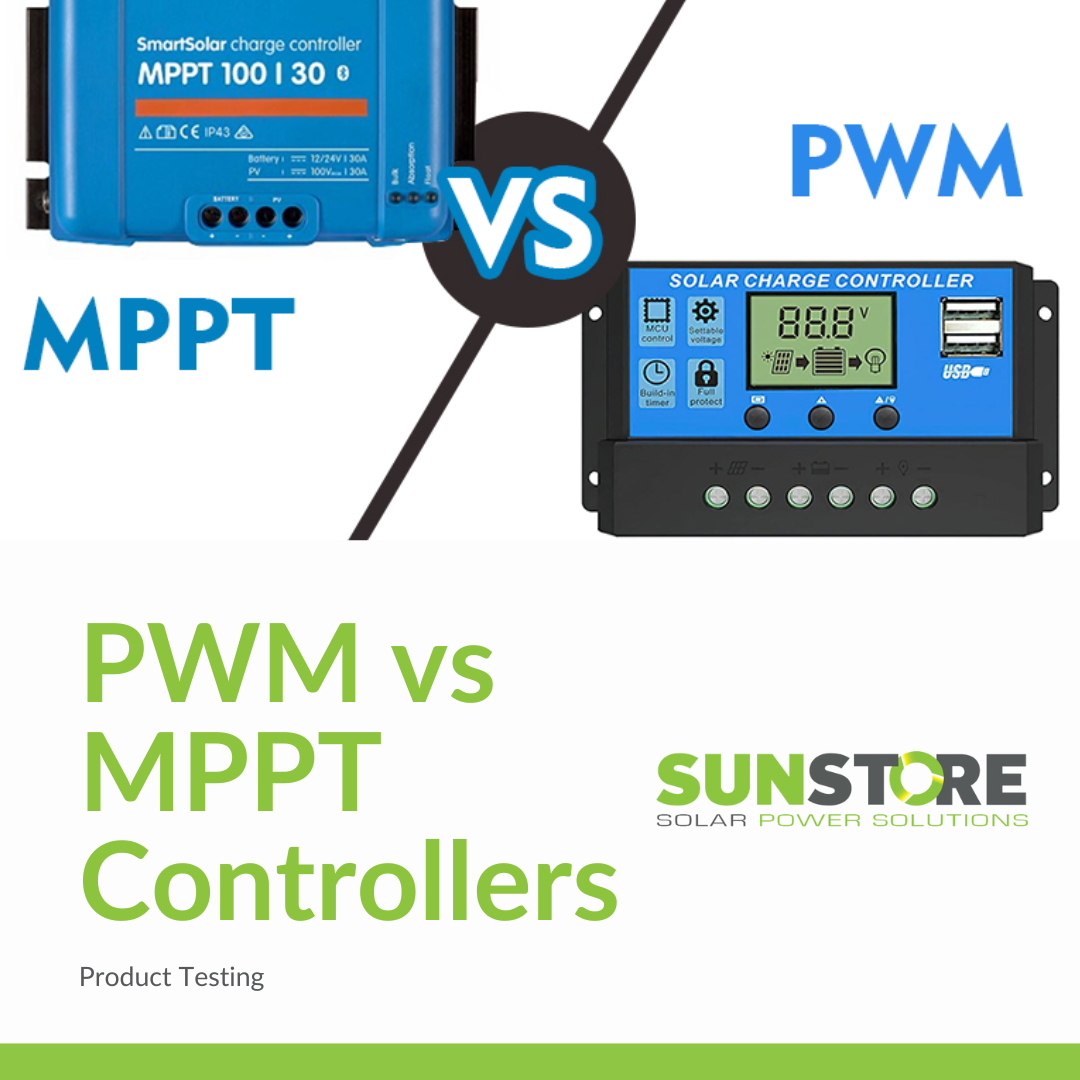

MPPT Vs PWM Charge Controllers Putting Extra Power Claims To The Test

Exploring MPPT Charge Controllers

3. Unlocking Maximum Power with MPPT Technology

MPPT controllers, on the other hand, are the sophisticated cousins of PWM controllers. They use a more advanced algorithm to constantly track the "maximum power point" of the solar panel. This is the voltage and current combination that allows the panel to produce the most power at any given time. Think of it like a smart cruise control for your solar power system.

Here's how it works: the MPPT controller acts as a DC-DC converter, taking the higher voltage from the solar panel and converting it to the lower voltage required by the battery. This allows the solar panel to operate at its optimal voltage, regardless of the battery's state of charge. The extra voltage is then converted into current, resulting in more power being delivered to the battery.

Imagine you have a bucket of water at the top of a hill, and you need to fill a smaller bucket at the bottom. With an MPPT controller, you're essentially using a smart system of pipes and valves to ensure that all the water from the top bucket makes its way to the bottom bucket, with minimal spillage. In essence, it optimizes the match between solar panel and battery, allowing the maximum power transfer.

The key advantage of MPPT controllers is their increased efficiency. They can typically extract 20-30% more power from your solar panels compared to PWM controllers, especially in colder weather or when the battery is deeply discharged. This translates to faster charging times, more usable energy, and a quicker return on your solar investment. Sure, they cost more upfront, but the long-term benefits can be significant.

How To Select The Right Size Of Solar Charge Controller?

Which One Should You Choose? The Decision Time!

4. Matching Your Needs to the Right Controller

So, PWM or MPPT? The answer, as always, is "it depends." If you have a small, simple solar system, and budget is your top priority, a PWM controller might be perfectly adequate. They're reliable, affordable, and easy to install. They're great for small solar projects and will get the job done.

However, if you're serious about maximizing the output of your solar panels, especially if you have a larger system, an MPPT controller is the way to go. The increased efficiency can significantly reduce charging times and increase the amount of usable energy you have available. It is a wise investment if you are trying to get the most energy possible.

Consider the long-term costs and benefits. While MPPT controllers have a higher upfront cost, their increased efficiency can lead to significant savings over the lifespan of your solar system. They're also more flexible and can accommodate a wider range of solar panel and battery configurations. They're a bit more complex but they will save you more money in the long run.

Ultimately, the best way to decide is to assess your specific needs and weigh the pros and cons of each type of controller. Consider factors like system size, battery type, climate, and budget. And if you're still unsure, don't hesitate to consult with a solar professional who can help you choose the right controller for your particular situation. Don't hesitate to ask professional help if needed, it will save you lots of trouble.

PWM Or MPPT? What's The Difference Between And MPPT Charge Control

Real-World Scenarios

5. Putting Theory into Practice

Let's paint some real-world scenarios to illustrate when each type of controller excels. Imagine you're setting up a small solar system for a weekend camping trip. You just need to charge a small battery to power some lights and a phone charger. In this case, a PWM controller would be a perfect fit. It's cheap, reliable, and simple to use. It's a very portable and simple system.

Now, imagine you're installing a solar system on your RV for extended off-grid adventures. You need to maximize the energy you can collect from your solar panels to power appliances, lights, and other devices. An MPPT controller would be the better choice here. Its increased efficiency will help you get the most out of your solar panels, ensuring you have enough power for your adventures. It's very important to make sure to harness all the energy available.

Or let's say you're building a large, grid-tied solar system for your home. In this scenario, an MPPT controller is almost always the preferred option. The increased efficiency will translate to more energy production, which can save you money on your electricity bill and increase your return on investment. It can also bring you closer to a fully sustainable way of living.

Think about it this way: PWM controllers are like a basic wrench — useful for simple tasks. MPPT controllers are like a sophisticated power tool — designed for optimal performance and efficiency. The right tool for the job depends on the complexity of the task and the desired outcome. Make sure to weigh all the pros and cons before choosing one.

MPPT Vs. PWM Which One Is Better? Solarixis

FAQs

6. Clearing Up the Confusion

Still have questions? No problem! Here are some frequently asked questions to help clarify things:

Q: Will an MPPT controller damage my battery if it's too powerful?

A: Not necessarily. MPPT controllers have built-in charging algorithms that prevent overcharging. As long as you choose a controller that's appropriately sized for your battery bank, it shouldn't cause any damage. Check the manufacturer's instructions carefully.

Q: Can I use a PWM controller with a high-voltage solar panel?

A: Generally, no. PWM controllers require the solar panel voltage to be close to the battery voltage. Using a high-voltage panel with a PWM controller can lead to wasted energy and even damage to the controller. An MPPT controller is better suited for high-voltage panels.

Q: Are MPPT controllers really worth the extra cost?

A: It depends on your situation. If you're only charging a small battery occasionally, the extra cost of an MPPT controller might not be justified. However, if you're using solar power regularly and want to maximize your energy harvest, an MPPT controller can pay for itself over time through increased efficiency and energy production. It's an investment that can provide value for years to come.
